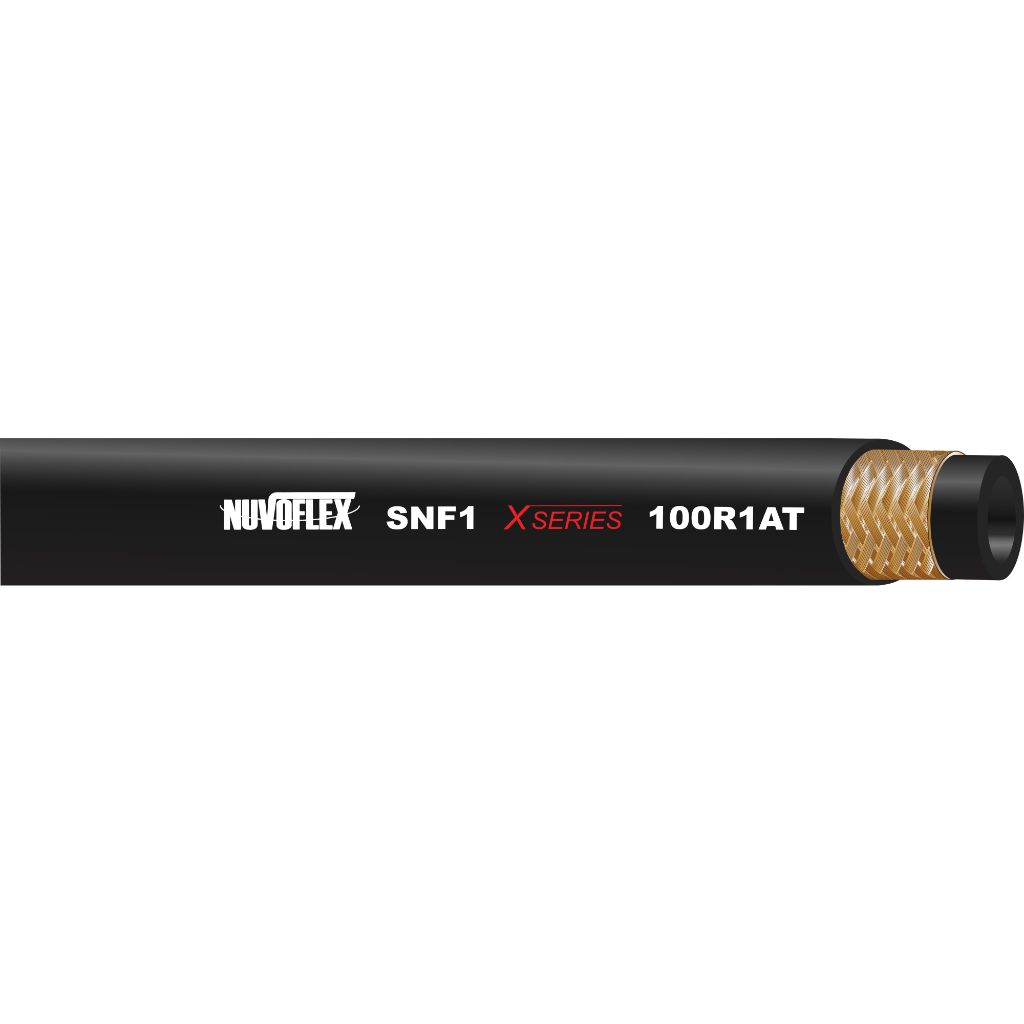

Nuvo, Hose, Black, 4.8 mm ID, 11.9 mm OD, 90 mm Bend Radius, Synthetic Rubber

Nuvo, Hose, Black, 4.8 mm ID, 11.9 mm OD, 90 mm Bend Radius, Synthetic Rubber

SKU SNF1-03 Categories , ,
Options
ID SNF1-03 ID SNF1-04 ID SNF1-06 ID SNF1-08 ID SNF1-12 ID SNF1-16

Additional information

Standards

SAE100R1AT/1SN

Color

Black

Hose Inside Diameter (Fraction Inch)

3/16 in

Hose Inside Diameter (Metric)

4.8 mm

Hose Outside Diameter (Metric)

11.9 mm

Bend Radius (Metric)

90 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Braid Wire

Working Pressure (psi)

3625 psi

Working Pressure (bar)

250 bar

Burst Pressure (psi)

14500 psi

Burst Pressure (bar)

1000 bar

Resistance Properties

Mineral, Vegetable and Hydraulic Oil Resistant, Oil and Weather Resistant, Abrasion Resistant

Compatible Media

Hydraulic Oil

Description

  • Tube: Mineral, vegetable and hydraulic oil resistant special synthetic rubber
  • Reinforcement: One high tensile steel wire braid
  • Cover: Oil, Abrasion and weather resistant special synthetic rubber
  • Application: For low-medium pressure hydraulic systems in industry and agriculture
See more See less

Documents

CATALOG_HOSEFITTINGS_2023_OPT
