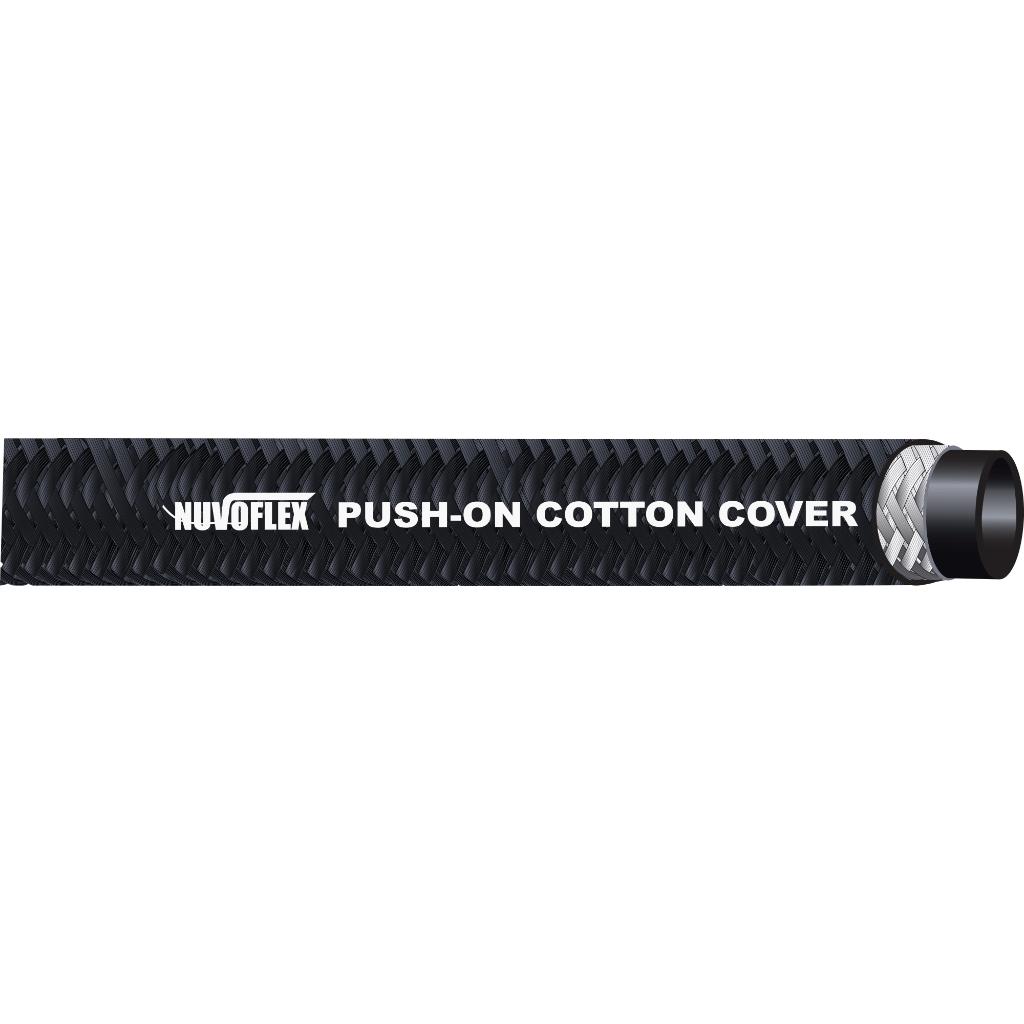

Nuvo, Push-On Hose, Black, 12.7 mm ID, 19.1 mm OD, 127 mm Bend Radius, Synthetic Rubber

Nuvo, Push-On Hose, Black, 12.7 mm ID, 19.1 mm OD, 127 mm Bend Radius, Synthetic Rubber

SKU PUSHCC-08 Categories , , ,
Options
Cloth Cover PUSHCC-04 PUSHCC-06 PUSHCC-06 PUSHCC-08 PUSHCC-08 PUSHCC-10 PUSHCC-10 PUSHCC-12 PUSHCC-12

Additional information

Standards

ISO 1307

Color

Black

Hose Inside Diameter (Fraction Inch)

1/2 in

Hose Inside Diameter (Metric)

12.7 mm

Hose Outside Diameter (Metric)

19.1 mm

Bend Radius (Metric)

127 mm

Hose Material

Synthetic Rubber

Cover Material

Textile Braid

Reinforcement Material

Textile Braid

Working Pressure (psi)

300 psi

Working Pressure (bar)

20.7 bar

Minimum Operating Temperature (°F)

-20 °F

Maximum Operating Temperature (°F)

210 °F

Minimum Operating Temperature (°C)

-29 °C

Maximum Operating Temperature (°C)

99 °C

Operating Temperature Range (°C)

-29 to +99 °C

Operating Temperature Range (°F)

-20 to +210 °F

Resistance Properties

Hydraulic Oil and Heat Resistant, Mildew Resistant

Compatible Media

Hydraulic Oil

Description

  • Tube: Hydraulic oil and heat resistant synthetic rubber
  • Reinforcement: 1 Textile braid
  • Cover: Black dyed textile braid, Mildew and oil resistance
  • Application: Low-pressure hydraulic and pneumatic system
See more See less
