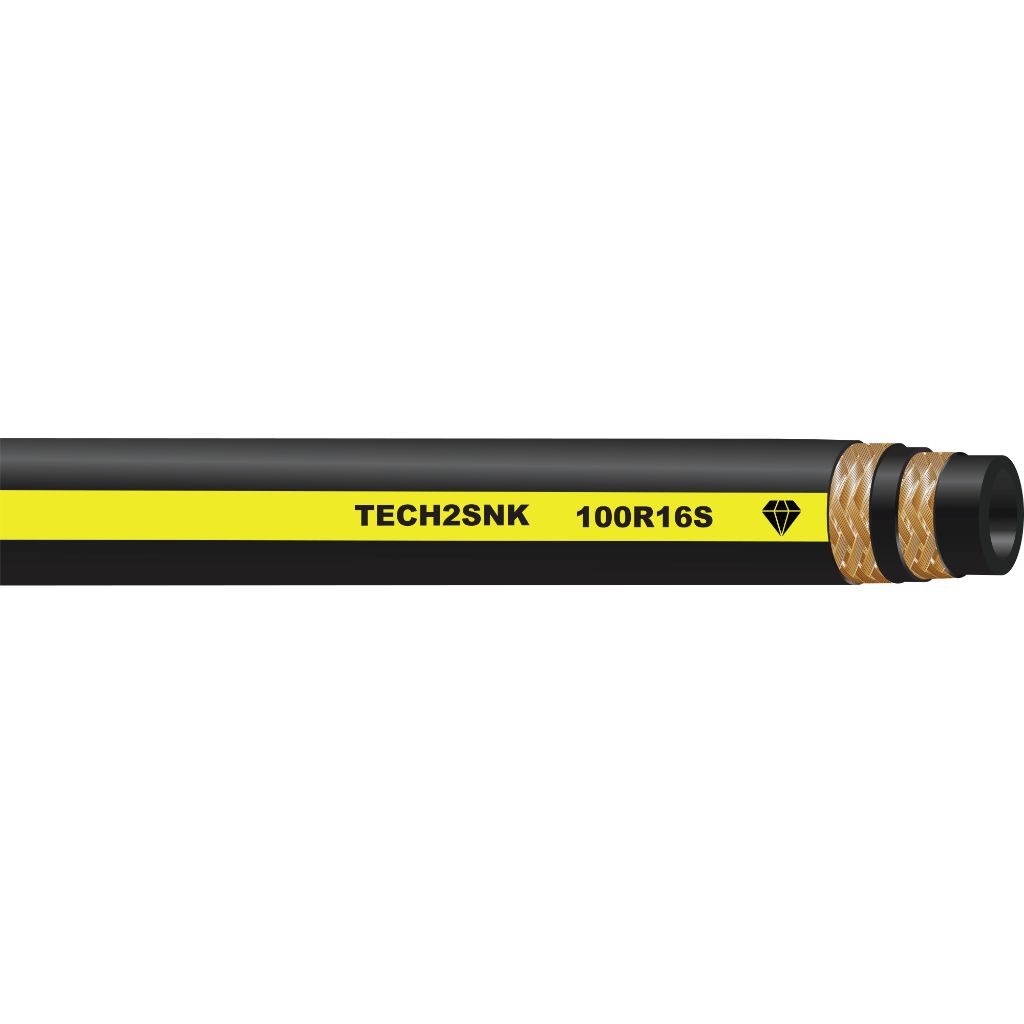

Nuvo, Hose, Black, 6.4 mm ID, 13.1 mm OD, 45 mm Bend Radius, Synthetic Rubber

Nuvo, Hose, Black, 6.4 mm ID, 13.1 mm OD, 45 mm Bend Radius, Synthetic Rubber

SKU TECH2SNK-04 Categories , ,

Additional information

Standards

SAE EN 853/SAE100R2AT

Color

Black

Hose Inside Diameter (Fraction Inch)

1/4 in

Hose Inside Diameter (Metric)

6.4 mm

Hose Outside Diameter (Metric)

13.1 mm

Bend Radius (Metric)

45 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Braid Wire

Working Pressure (psi)

6530 psi

Working Pressure (bar)

450 bar

Burst Pressure (psi)

26107 psi

Burst Pressure (bar)

1800 bar

Minimum Operating Temperature (°F)

-40 °F (Hydraulic Oil, Water Glycol Hydraulic Fluid), 32 °F (Water)

Maximum Operating Temperature (°F)

212 °F (Hydraulic Oil), 158 °F (Water Glycol Hydraulic Fluid, Water, Air)

Minimum Operating Temperature (°C)

-40 °C (Hydraulic Oil, Water Glycol Hydraulic Fluid), 0 °C (Water)

Maximum Operating Temperature (°C)

100 °C (Hydraulic Oil), 70 °C (Water Glycol Hydraulic Fluid, Water, Air)

Operating Temperature Range (°C)

-40 to 100 °C (Hydraulic), -40 to 70 °C (Water Glycol Hydraulic Fluid, Water, Air)

Operating Temperature Range (°F)

-40 to 212 °F (Hydraulic), -40 to 158 °F (Water Glycol Hydraulic Fluid), 32 to 158 °F (Water), Upto 70 °F (Air)

Resistance Properties

Oil Resistant, Weather Resistant

Compatible Media

Hydraulic Oil, Water Glycol Hydraulic Fluid, Water, Air

Description

  • Tube: Oil resistant synthetic rubber
  • Reinforcement: Two braid of high tensile steel wire
  • Cover: Oil and weather resistant black synthetic rubber smooth cover
  • Application: High pressure hydraulic lines tough cover
