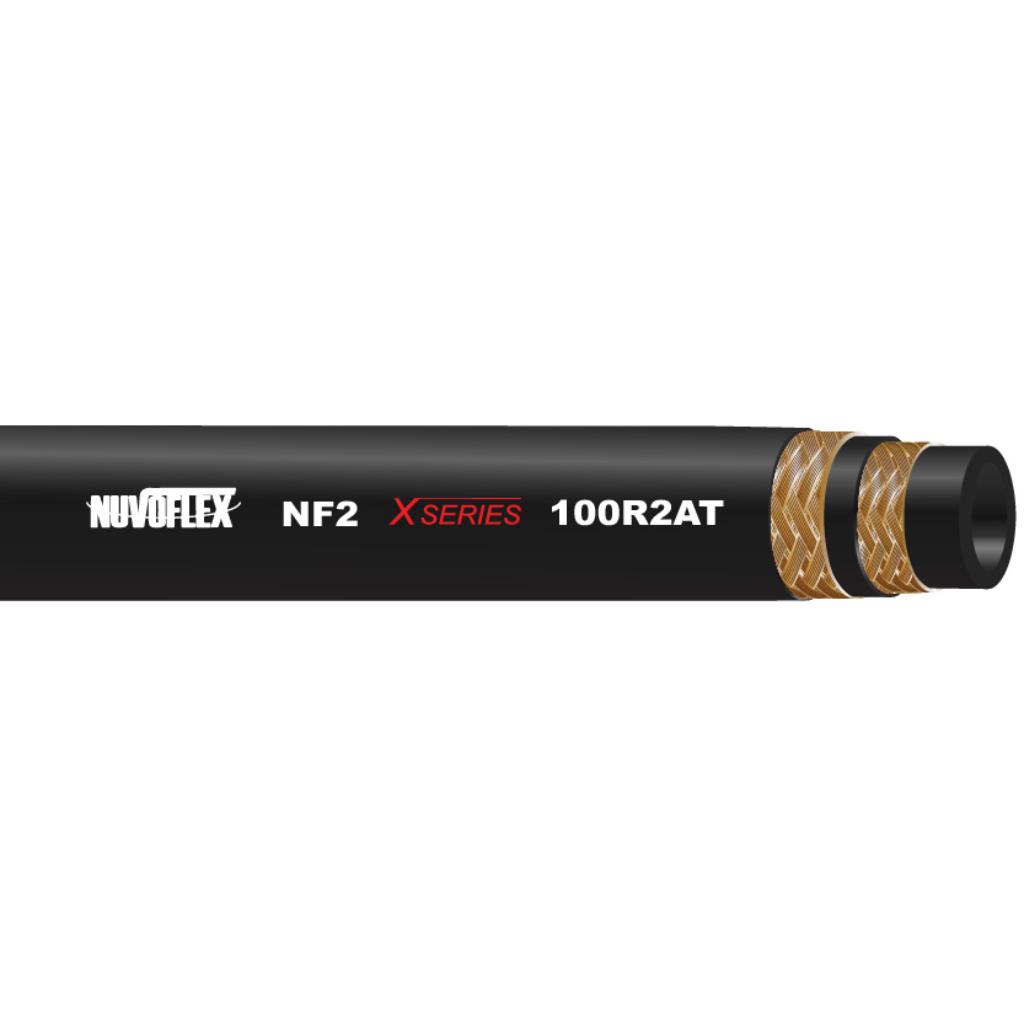

Nuvo, Hose, Black, 38.1 mm ID, 54.6 mm OD, 500 mm Bend Radius, Synthetic Rubber

Nuvo, Hose, Black, 38.1 mm ID, 54.6 mm OD, 500 mm Bend Radius, Synthetic Rubber

SKU NF2-24 Categories Hose, SNF2 / NF2, Two Wire Hose

Options

ID NF2-20 ID NF2-24 ID NF2-32

Additional information

Standards

SAE100R2AT/2SN

Certifications

U.S. MSHA Certification

Color

Black

Hose Inside Diameter (Fraction Inch)

1-1/2 in

Hose Inside Diameter (Metric)

38.1 mm

Hose Outside Diameter (Metric)

54.6 mm

Bend Radius (Metric)

500 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Braid Wire

Working Pressure (psi)

1305 psi

Working Pressure (bar)

90 bar

Burst Pressure (psi)

5220 psi

Burst Pressure (bar)

360 bar

Minimum Operating Temperature (°F)

-40 °F

Maximum Operating Temperature (°F)

212 °F

Minimum Operating Temperature (°C)

-40 °C

Maximum Operating Temperature (°C)

100 °C

Operating Temperature Range (°C)

-40 to +100 °C

Operating Temperature Range (°F)

-40 to +212 °F

Resistance Properties

Mineral, Vegetable and Hydraulic Oil Resistant, Oil and Weather Resistant, Abrasion Resistant, Flame Resistant

Compatible Media

Hydraulic Oil

Description

Tube: Mineral, vegetable and hydraulic oil resistant special synthetic rubber
Reinforcement: 2 high tensile steel wire braid
Cover: Oil, Abrasion and weather resistant special synthetic rubber
Application: For low-medium pressure hydraulic systems in industry and agriculture
