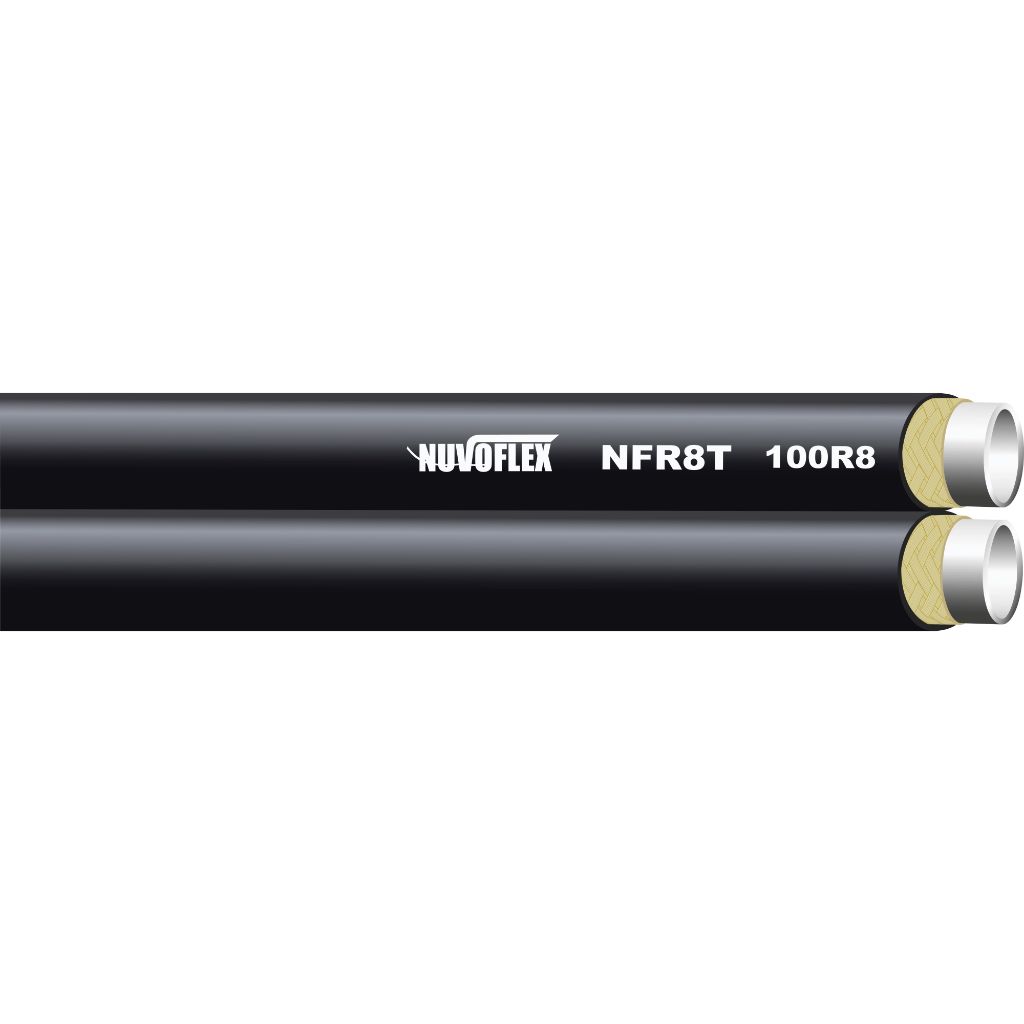

Nuvo, Hose, Black, 6 mm ID, 25.6 mm OD, 51 mm Bend Radius, Polyester

Nuvo, Hose, Black, 6 mm ID, 25.6 mm OD, 51 mm Bend Radius, Polyester

SKU NFR8T-04 Categories , , , ,

Additional information

Standards

SAE100R8

Color

Black

Hose Inside Diameter (Fraction Inch)

1/4 in

Hose Inside Diameter (Metric)

6 mm

Hose Outside Diameter (Metric)

25.6 mm

Bend Radius (Metric)

51 mm

Hose Material

Polyester

Cover Material

Polyurethane

Reinforcement Material

Aramid Braid

Working Pressure (psi)

5000 psi

Working Pressure (bar)

345 bar

Burst Pressure (psi)

20000 psi

Burst Pressure (bar)

1380 bar

Minimum Operating Temperature (°F)

-40 °F

Maximum Operating Temperature (°F)

212 °F

Minimum Operating Temperature (°C)

-40 °C

Maximum Operating Temperature (°C)

100 °C

Operating Temperature Range (°C)

-40 to +100 °C

Operating Temperature Range (°F)

-40 to +212 °F

Resistance Properties

Hydraulic Oil, Air and Water Based Fluid Resistant, Oil Resistant, Abrasion Resistant, Weather Resistant

Compatible Media

Air, Water, Mineral Oil, Synthetic Oil

Description

  • Tube: Hydraulic oils, air and water based fluid resistant polyester
  • Reinforcement: High tensile polyester fiber braid
  • Cover: Oil, abrasion and weather resistant polyurethane
  • Application: For Air, Water, Mineral and/or Synthetic Oils Discharge at Medium Pressure
