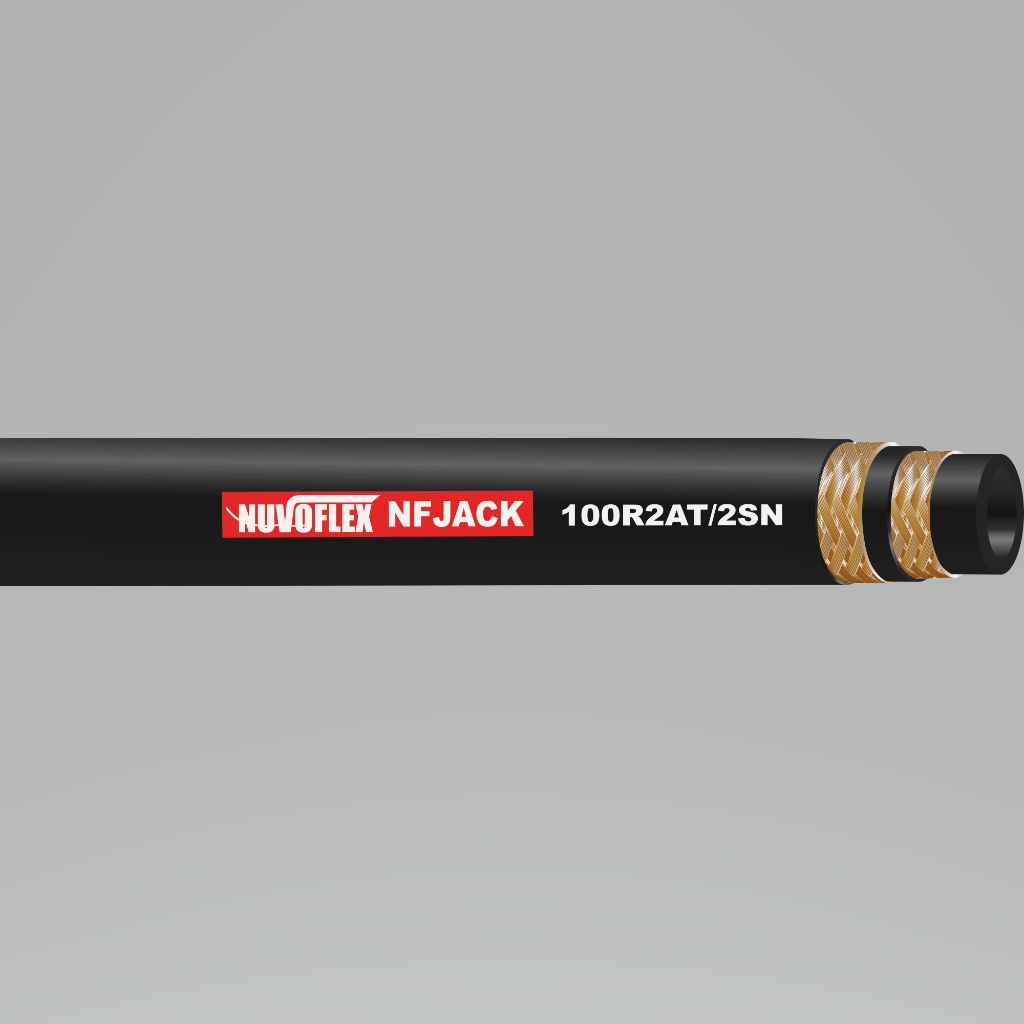

Nuvo, Hose, Black, 6.4 mm ID, 15.0 mm OD, 100 mm Bend Radius, Synthetic Rubber

Nuvo, Hose, Black, 6.4 mm ID, 15.0 mm OD, 100 mm Bend Radius, Synthetic Rubber

SKU NFJACK-04 Categories , ,
Options
ID NFJACK-04 ID NFJACK-06

Additional information

Standards

SAE100R2SC/2SN, ISO 1307

Color

Black

Hose Inside Diameter (Fraction Inch)

1/4 in

Hose Inside Diameter (Metric)

6.4 mm

Hose Outside Diameter (Metric)

15 mm

Bend Radius (Metric)

100 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Braid Wire

Working Pressure (psi)

10150 psi

Working Pressure (bar)

700 bar

Burst Pressure (psi)

20000 psi

Burst Pressure (bar)

1400 bar

Minimum Operating Temperature (°F)

-40 °F

Maximum Operating Temperature (°F)

212 °F

Minimum Operating Temperature (°C)

-40 °C

Maximum Operating Temperature (°C)

100 °C

Operating Temperature Range (°C)

-40 to +100 °C

Operating Temperature Range (°F)

-40 to +212 °F

Resistance Properties

Mineral, Vegetable and Hydraulic Oil Resistant, Oil and Weather Resistant, Abrasion Resistant

Compatible Media

Hydraulic Oil

Description

  • Tube: Mineral, Vegetable and hydraulic oil resistant special synthetic rubber
  • Reinforcement: 2 high tensile steel wire braid
  • Cover: Oil, abrasion and weather resistant special synthetic rubber
  • Application: For high pressure hydraulic system in jacking application
See more See less

Documents

CATALOG_HOSEFITTINGS_2023_OPT
