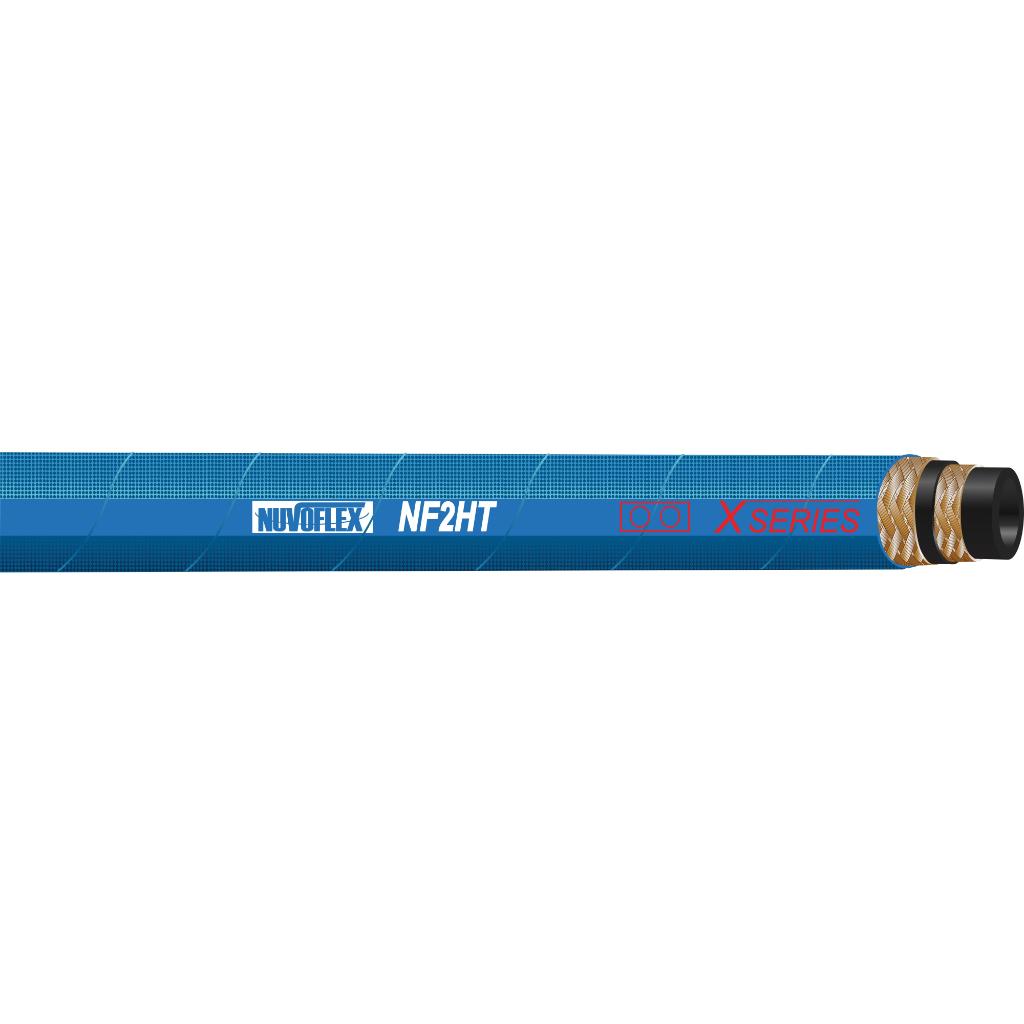

Nuvo, Hose, Blue, 16.0 mm ID, 25.2 mm OD, 200 mm Bend Radius, Synthetic Rubber

SKU NF2HT-10 Categories Hose, NF2HT, PUSHRC, Two Wire Hose

Options

NF2HT-04 NF2HT-04 NF2HT-06 NF2HT-06 NF2HT-08 NF2HT-08 NF2HT-10 NF2HT-10 NF2HT-12 NF2HT-12 NF2HT-16 NF2HT-16 High Temp NF2HT-20 High Temp NF2HT-24 High Temp NF2HT-32

Additional information

Standards

SAE100R2AT/DIN-EN 853 2SN

Certifications

U.S. MSHA Certification

Color

Blue

Hose Inside Diameter (Fraction Inch)

5/8 in

Hose Inside Diameter (Metric)

16 mm

Hose Outside Diameter (Metric)

25.2 mm

Bend Radius (Metric)

200 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Braid Wire

Working Pressure (psi)

3625 psi

Working Pressure (bar)

250 bar

Burst Pressure (psi)

14500 psi

Burst Pressure (bar)

1000 bar

Minimum Operating Temperature (°F)

-58 °F

Maximum Operating Temperature (°F)

275 °F

Minimum Operating Temperature (°C)

-50 °C

Maximum Operating Temperature (°C)

135 °C

Operating Temperature Range (°C)

-50 to +135 °C

Operating Temperature Range (°F)

-58 to +275 °F

Resistance Properties

Hydraulic Oil Resistant, Oil and Weather Resistant, Abrasion Resistant, Flame Resistant

Compatible Media

Hydraulic Oil

Description

Tube: High temperature hydraulic oil resistant special synthetic rubber
Reinforcement: 2 high tensile steel wire braid
Cover: Oil, Abrasion and weather resistant special synthetic rubber
Application: For medium-high pressure hydraulic systems in industry, compressor and mining where operating temperature are up to 150°C
