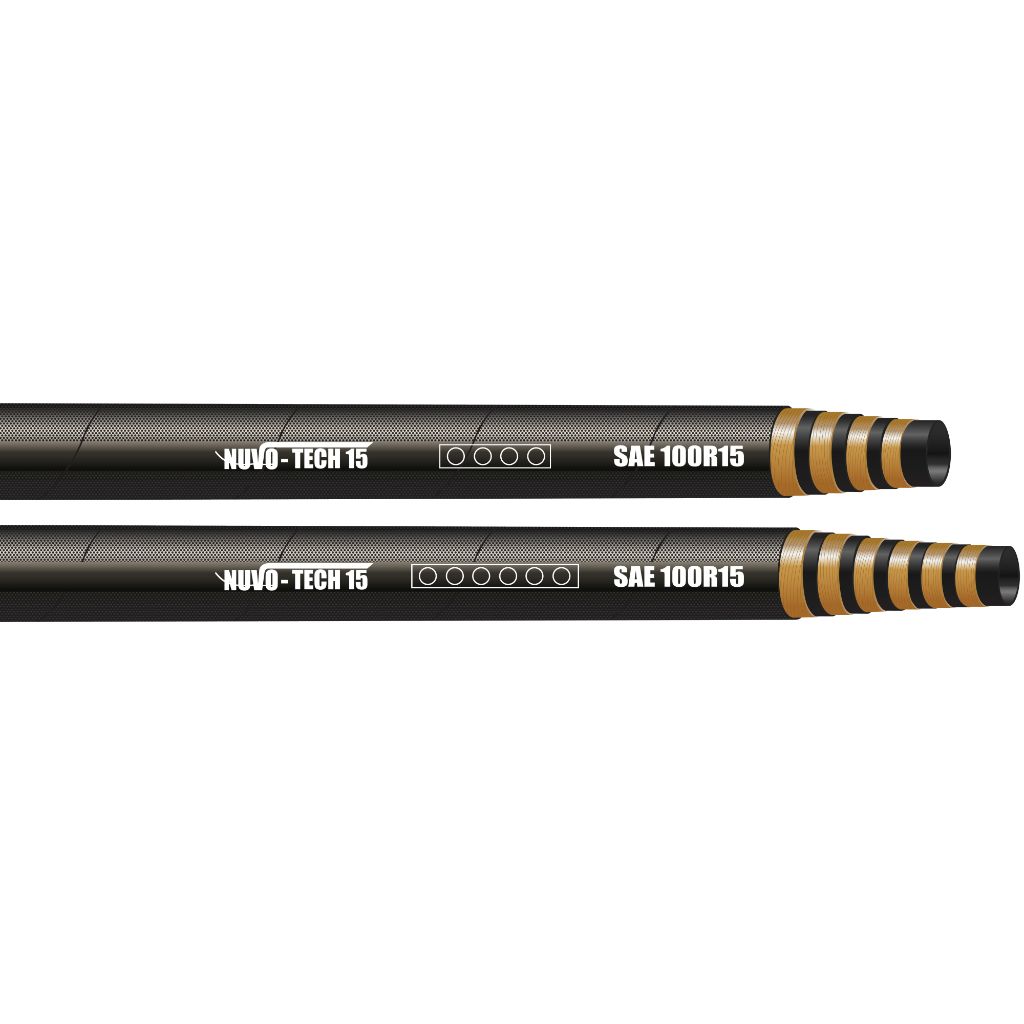

Nuvo, Half Bend Radius Hose, Black, 9.5 mm ID, 19.7 mm OD, 76 mm Bend Radius, Synthetic Rubber

Nuvo, Half Bend Radius Hose, Black, 9.5 mm ID, 19.7 mm OD, 76 mm Bend Radius, Synthetic Rubber

SKU TECH15-06 Categories , , ,
Options
SAE 100R15 TECH15-06 SAE 100R15 TECH15-08 SAE 100R15 TECH15-10 SAE 100R15 TECH15-12 SAE 100R15 TECH15-16 SAE 100R15 TECH15-20 SAE 100R15 TECH15-24 SAE 100R15 TECH15-32

Additional information

Standards

SAE100R15, ISO 1307

Color

Black

Hose Inside Diameter (Fraction Inch)

3/8 in

Hose Inside Diameter (Metric)

9.5 mm

Hose Outside Diameter (Metric)

19.7 mm

Bend Radius (Metric)

76 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Spiral

Working Pressure (psi)

6092 psi

Working Pressure (bar)

415 bar

Burst Pressure (psi)

20305 psi

Burst Pressure (bar)

1660 bar

Minimum Operating Temperature (°F)

-40 °F

Maximum Operating Temperature (°F)

248 °F

Minimum Operating Temperature (°C)

-40 °C

Maximum Operating Temperature (°C)

100 °C

Operating Temperature Range (°C)

-40 to +100 °C

Operating Temperature Range (°F)

-40 to +248 °F

Resistance Properties

Mineral, Vegetable and Glycol Based Hydraulic Oil Resistant, Abrasion Resistant, Weather Resistant

Compatible Media

Hydraulic Oil

Description

  • Tube: Mineral, Vegetable and glycol based hydraulic oil resistant special synthetic rubber
  • Reinforcement: 4 or 6 High tensile steel spiral
  • Cover: Hydraulic oil, abrasion and weather resistant special synthetic rubber
  • Application: For hydraulic system with high peak temperature and arduous operating conditions
See more See less

Documents

CATALOG_HOSEFITTINGS_2023_OPT
