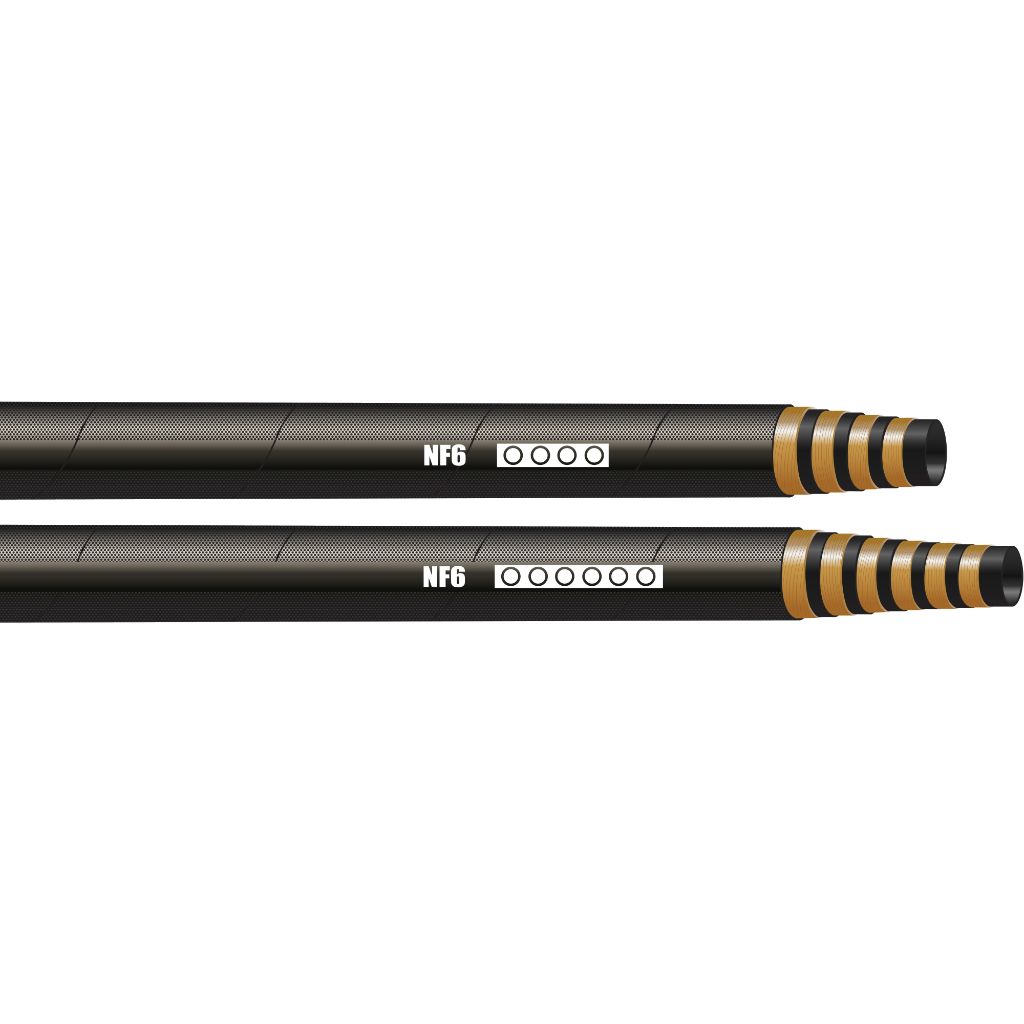

Nuvo, Hose, Black, 9.5 mm ID, 20.6 mm OD, 110 mm Bend Radius, Synthetic Rubber

Nuvo, Hose, Black, 9.5 mm ID, 20.6 mm OD, 110 mm Bend Radius, Synthetic Rubber

SKU NF6-06 Categories , , ,

Additional information

Certifications

U.S. MSHA Certification

Color

Black

Hose Inside Diameter (Fraction Inch)

3/8 in

Hose Inside Diameter (Metric)

9.5 mm

Hose Outside Diameter (Metric)

20.6 mm

Bend Radius (Metric)

110 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Spiral

Working Pressure (psi)

6090 psi

Working Pressure (bar)

420 bar

Burst Pressure (psi)

24360 psi

Burst Pressure (bar)

1680 bar

Minimum Operating Temperature (°F)

-40 °F

Maximum Operating Temperature (°F)

248 °F

Minimum Operating Temperature (°C)

-40 °C

Maximum Operating Temperature (°C)

100 °C

Operating Temperature Range (°C)

-40 to +100 °C

Operating Temperature Range (°F)

-40 to +248 °F

Resistance Properties

Mineral, Vegetable and Glycol Based Hydraulic Oil Resistant, Abrasion Resistant, Weather Resistant, Flame Resistant

Description

  • Tube: Mineral, vegetable and glycol based hydraulic oil resistant special synthetic rubber
  • Reinforcement: 4 or 6 High tensile steel spiral
  • Cover: Hydraulic oil, abrasion and weather resistant special synthetic rubber
  • Application: For hydraulic system with high peak temperature and arduous operating conditions
