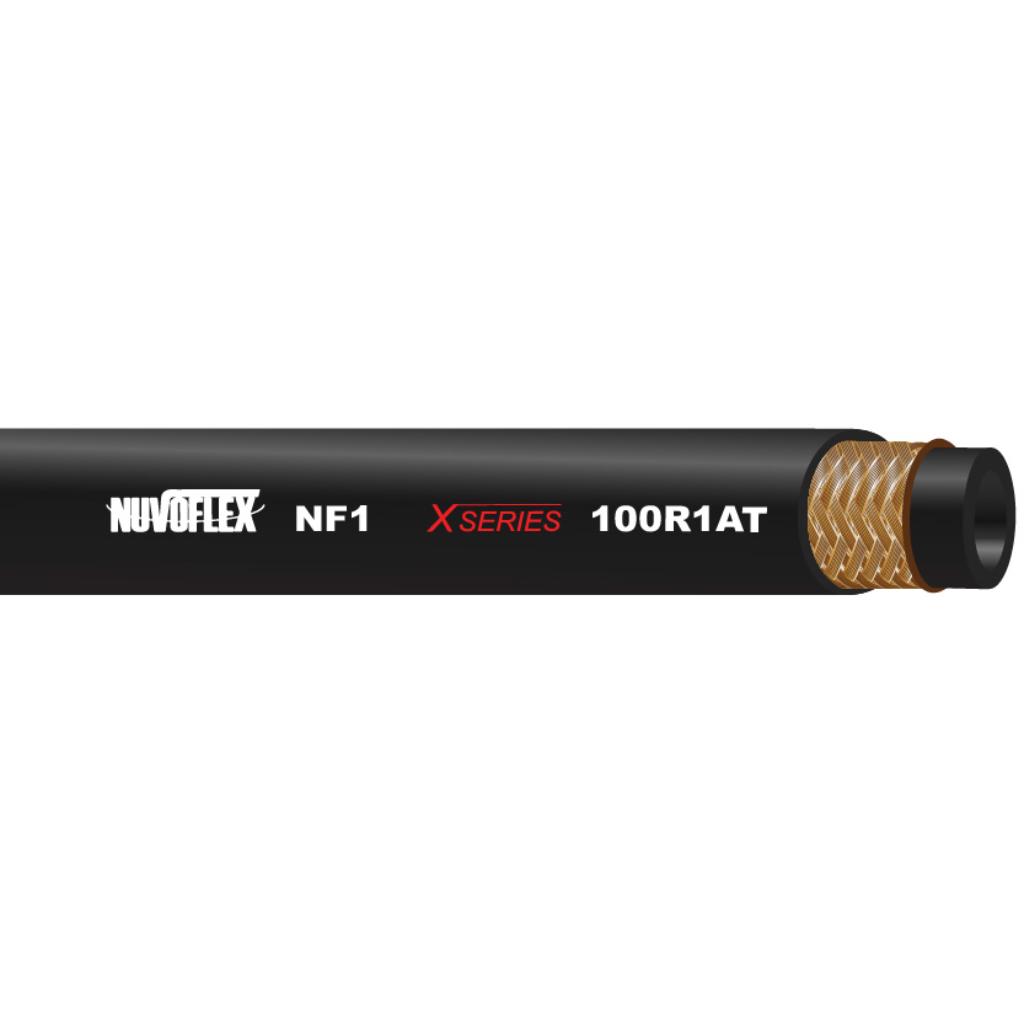

Nuvo, Hose, Black, 38.1 mm ID, 50.6 mm OD, 500 mm Bend Radius, Synthetic Rubber

Nuvo, Hose, Black, 38.1 mm ID, 50.6 mm OD, 500 mm Bend Radius, Synthetic Rubber

SKU NF1-24 Categories , ,
Options
ID NF1-20 ID NF1-24 ID NF1-32

Additional information

Standards

SAE100R1AT/1SN

Color

Black

Hose Inside Diameter (Fraction Inch)

1-1/2 in

Hose Inside Diameter (Metric)

38.1 mm

Hose Outside Diameter (Metric)

50.6 mm

Bend Radius (Metric)

500 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Braid Wire

Working Pressure (psi)

725 psi

Working Pressure (bar)

50 bar

Burst Pressure (psi)

2900 psi

Burst Pressure (bar)

200 bar

Compatible Media

Hydraulic Oil

Description

  • Tube: Mineral, vegetable and hydraulic oil resistant special synthetic rubber
  • Reinforcement: One high tensile steel wire braid
  • Cover: Oil, Abrasion and weather resistant special synthetic rubber
  • Application: For low-medium pressure hydraulic systems in industry and agriculture
See more See less

Documents

CATALOG_HOSEFITTINGS_2023_OPT
