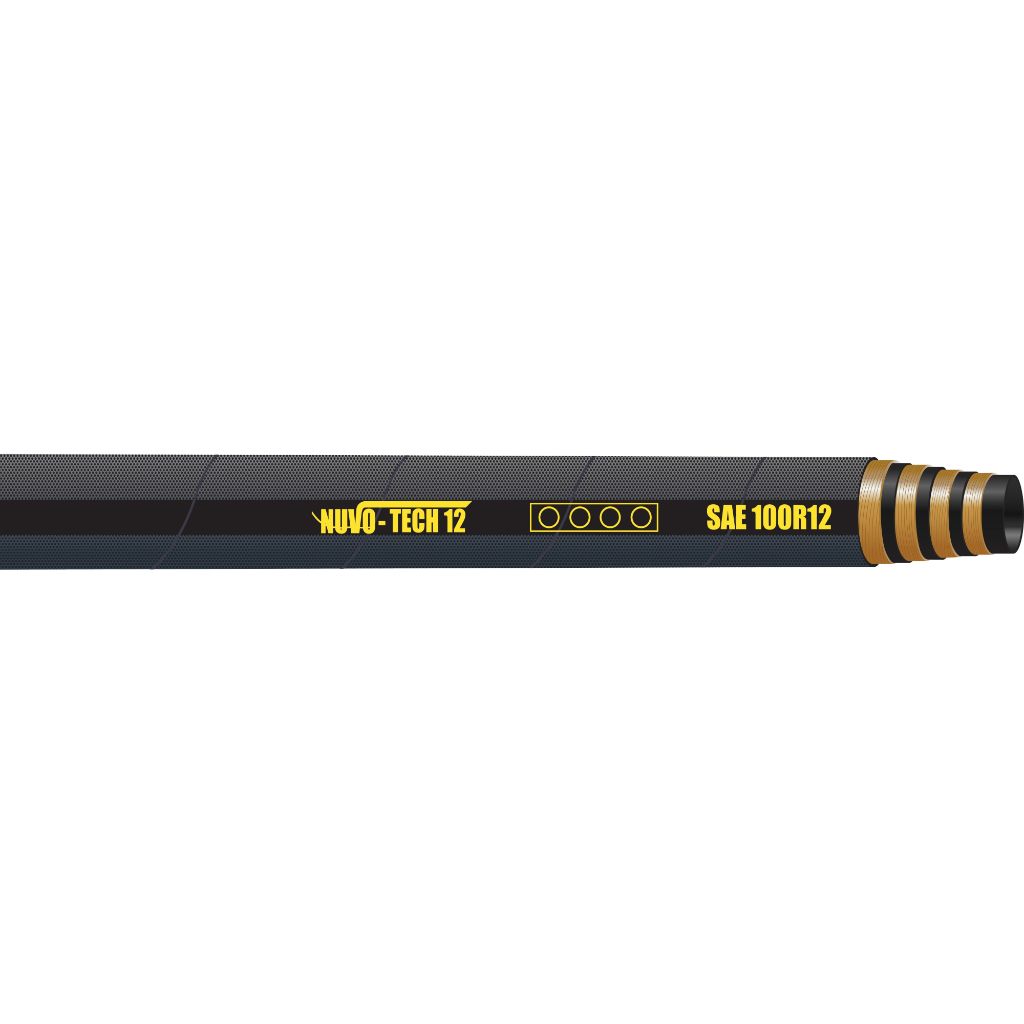

Nuvo, Half Bend Radius Hose, Black, 31.75 mm ID, 47.00 mm OD, 210 mm Bend Radius, Synthetic Rubber

Nuvo, Half Bend Radius Hose, Black, 31.75 mm ID, 47.00 mm OD, 210 mm Bend Radius, Synthetic Rubber

SKU TECH12-20 Categories , , ,
Options
SAE 100R12 TECH12-06 SAE 100R12 TECH12-08 SAE 100R12 TECH12-10 SAE 100R12 TECH12-12 SAE 100R12 TECH12-16 SAE 100R12 TECH12-20 SAE 100R12 TECH12-24 SAE 100R12 TECH12-32

Additional information

Standards

SAE100R12, ISO 1307

Color

Black

Hose Inside Diameter (Fraction Inch)

1-1/4 in

Hose Inside Diameter (Metric)

31.75 mm

Hose Outside Diameter (Metric)

47 mm

Bend Radius (Metric)

210 mm

Hose Material

Synthetic Rubber

Cover Material

Synthetic Rubber

Reinforcement Material

Steel Spiral

Working Pressure (psi)

3000 psi

Working Pressure (bar)

207 bar

Burst Pressure (psi)

12009 psi

Burst Pressure (bar)

828 bar

Minimum Operating Temperature (°F)

-40 °F

Maximum Operating Temperature (°F)

248 °F

Minimum Operating Temperature (°C)

-40 °C

Maximum Operating Temperature (°C)

100 °C

Operating Temperature Range (°C)

-40 to +100 °C

Operating Temperature Range (°F)

-40 to +248 °F

Resistance Properties

Mineral, Vegetable and Glycol Based Hydraulic Oil Resistant, Abrasion Resistant, Weather Resistant

Compatible Media

Hydraulic Oil

Description

  • Tube: Mineral, Vegetable and glycol based hydraulic oil resistant special synthetic rubber
  • Reinforcement: 4 or 6 High tensile steel spiral
  • Cover: Hydraulic oil, abrasion and weather resistant special synthetic rubber
  • Application: For hydraulic system with high peak temperature and arduous operating conditions
See more See less

Documents

CATALOG_HOSEFITTINGS_2023_OPT
