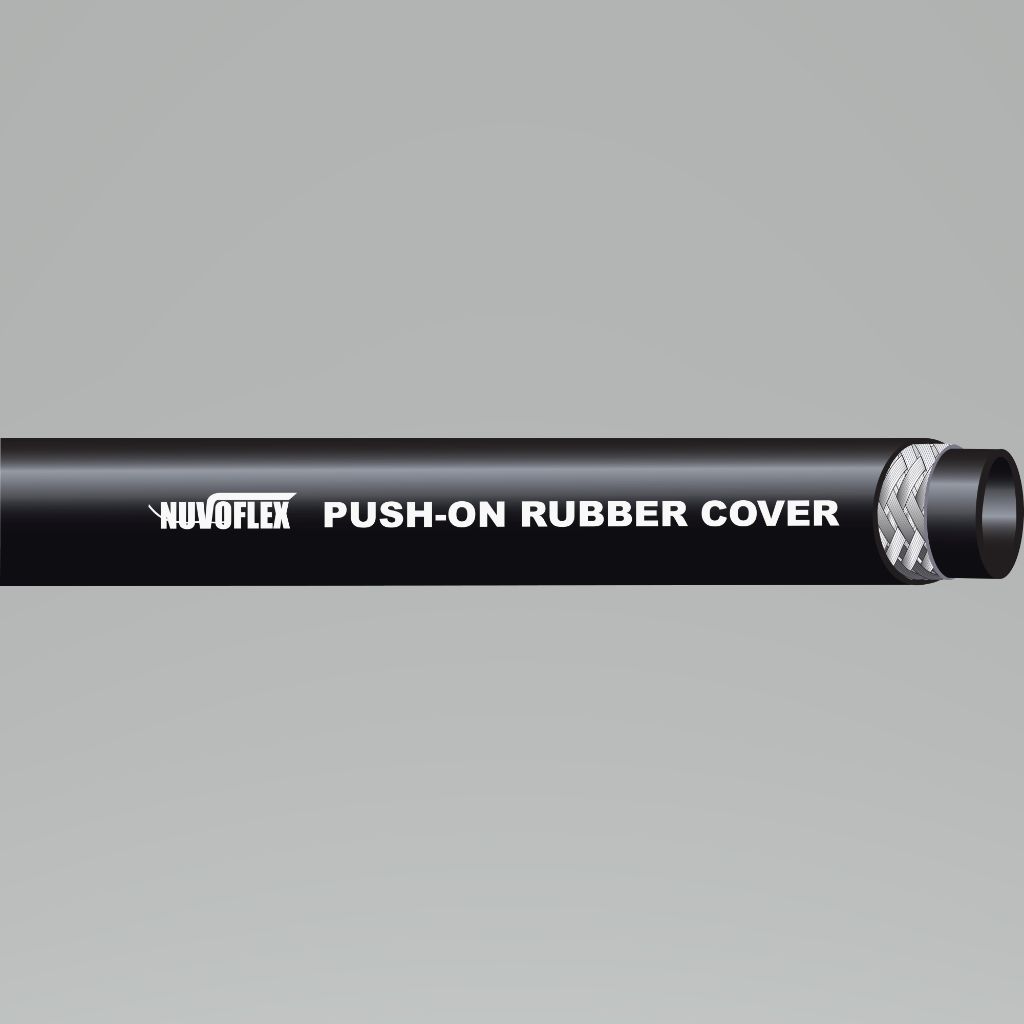

Nuvo, Push-On Hose, Black, 15.9 mm ID, 23.9 mm OD, 152 mm Bend Radius, Synthetic Rubber

Nuvo, Push-On Hose, Black, 15.9 mm ID, 23.9 mm OD, 152 mm Bend Radius, Synthetic Rubber

SKU PUSHRC-10 Categories , , ,
Options
Rubber Cover PUSHRC-04 Rubber Cover PUSHRC-05 Rubber Cover PUSHRC-06 Rubber Cover PUSHRC-08 Rubber Cover PUSHRC-10 Rubber Cover PUSHRC-12

Additional information

Color

Black

Hose Inside Diameter (Fraction Inch)

5/8 in

Hose Inside Diameter (Metric)

15.9 mm

Hose Outside Diameter (Metric)

23.9 mm

Bend Radius (Metric)

152 mm

Hose Material

Synthetic Rubber

Reinforcement Material

Aramid Yarn

Working Pressure (psi)

250 psi

Working Pressure (bar)

17.2 bar

Minimum Operating Temperature (°F)

-20 °F

Maximum Operating Temperature (°F)

210 °F

Minimum Operating Temperature (°C)

-29 °C

Maximum Operating Temperature (°C)

99 °C

Operating Temperature Range (°C)

-29 to +99 °C

Operating Temperature Range (°F)

-20 to +210 °F

Resistance Properties

Hydraulic Oil and Heat Resistant

Compatible Media

Hydraulic Oil

Description

  • Tube: Hydraulic oil and heat resistant synthetic rubber
  • Reinforcement: Spiral aramid Yarn
  • Cover: Black oil resistance
  • Application: For use with push-on fittings at working pressures of 250 PS, For industrial service non conductive
See more See less
