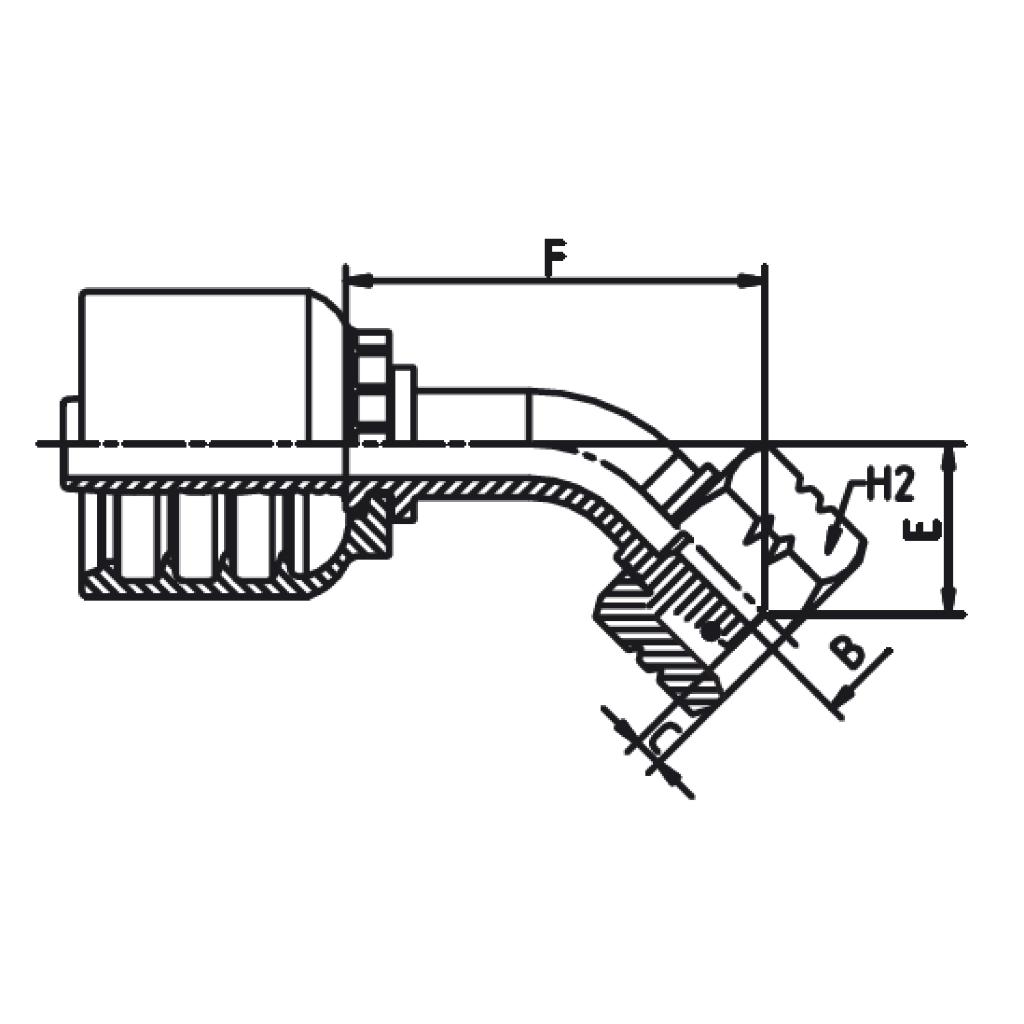

Additional information
Standards
DIN20066, DIN3865
Fitting Shape
45° Swept
Connection Size 1 (Metric)
M18
Connection Size 2 (Fraction Inch)
3/8 in
Connection Size 2 (Metric)
10 mm
Connection Type 1
Metric
Connection Type 2
Crimp
Connection Gender 1
Female
Connection Gender 2
Genderless
For Hose Dash Size
-06
Termination Dash Size
-18
For Hose Inside Diameter (Fraction Inch)
3/8 in
For Hose Inside Diameter (Metric)
10 mm
Thread Size 1 (Metric)
M18 X 1.5
Working Pressure (MPa)
68.9 MPa
Working Pressure (psi)
10000 psi
Cutoff Size (Metric)
49 mm
Stem Hex Size (Metric)
22 mm
Drop Length (Metric)
23 mm
Seal Type
O-Ring
Seated Angle (°)
24 °
Inside Diameter (Metric)
5 mm
Tube Outside Diameter (Metric)
10 mm
