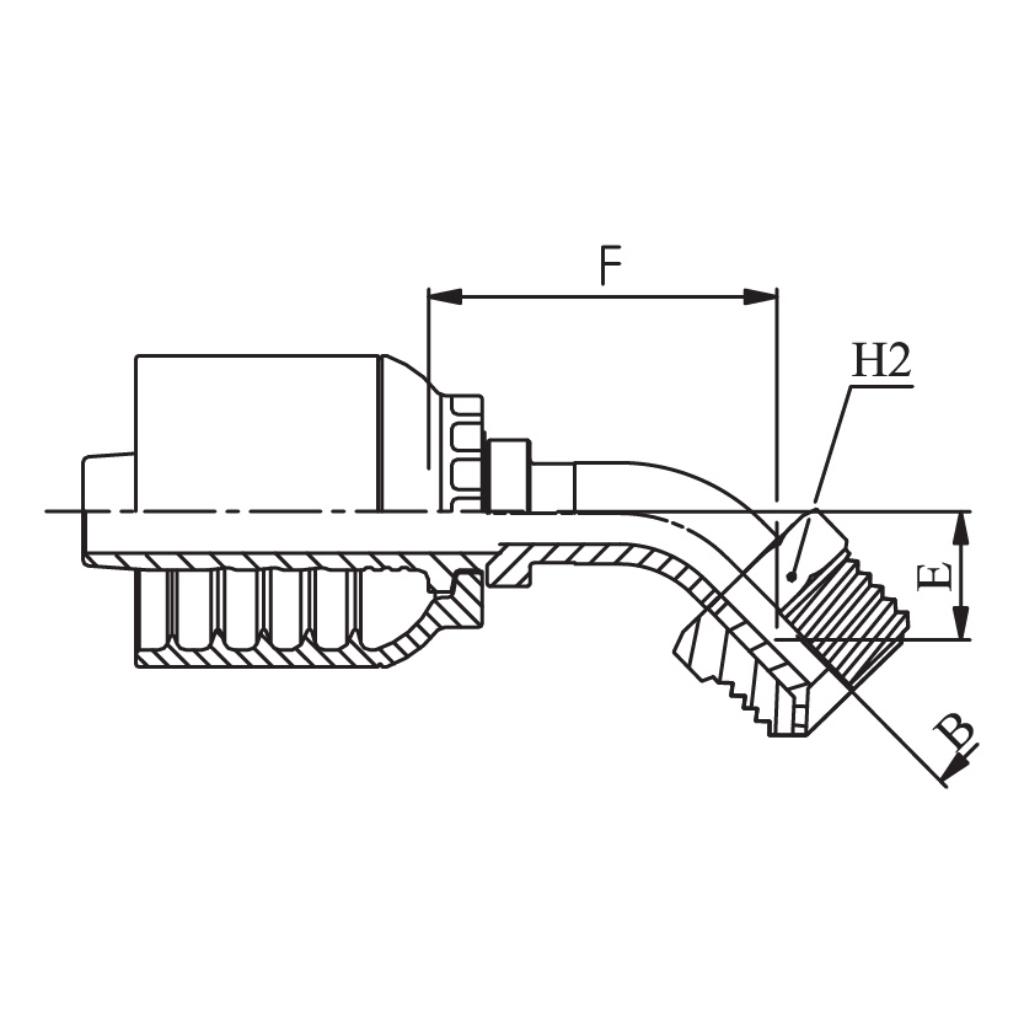

Nuvo, Automotive Insert, 7/16 in Male Inverted Flare, 3/8 in Crimp, -06 Hose Dash Size, 45° Swept

Nuvo, Automotive Insert, 7/16 in Male Inverted Flare, 3/8 in Crimp, -06 Hose Dash Size, 45° Swept

SKU C-12940-06-04 Categories , , , ,

Additional information

Standards

SAE J516, SAE J512

Fitting Shape

45° Swept

Connection Size 1 (Fraction Inch)

7/16 in

Connection Size 2 (Fraction Inch)

3/8 in

Connection Size 2 (Metric)

10 mm

Connection Type 1

Inverted Flare

Connection Type 2

Crimp

Connection Gender 1

Male

Connection Gender 2

Genderless

For Hose Dash Size

-06

Termination Dash Size

-04

For Hose Inside Diameter (Fraction Inch)

3/8 in

For Hose Inside Diameter (Metric)

10 mm

Thread Size 1 (Inch)

7/16-24

Cutoff Size (Metric)

68 mm

Nut Hex Size (Metric)

12 mm

Drop Length (Metric)

32 mm

Inside Diameter (Metric)

3.9 mm

Tube Outside Diameter (Fraction Inch)

1/4 in

Description

  • 45° Male Inverted Flare
