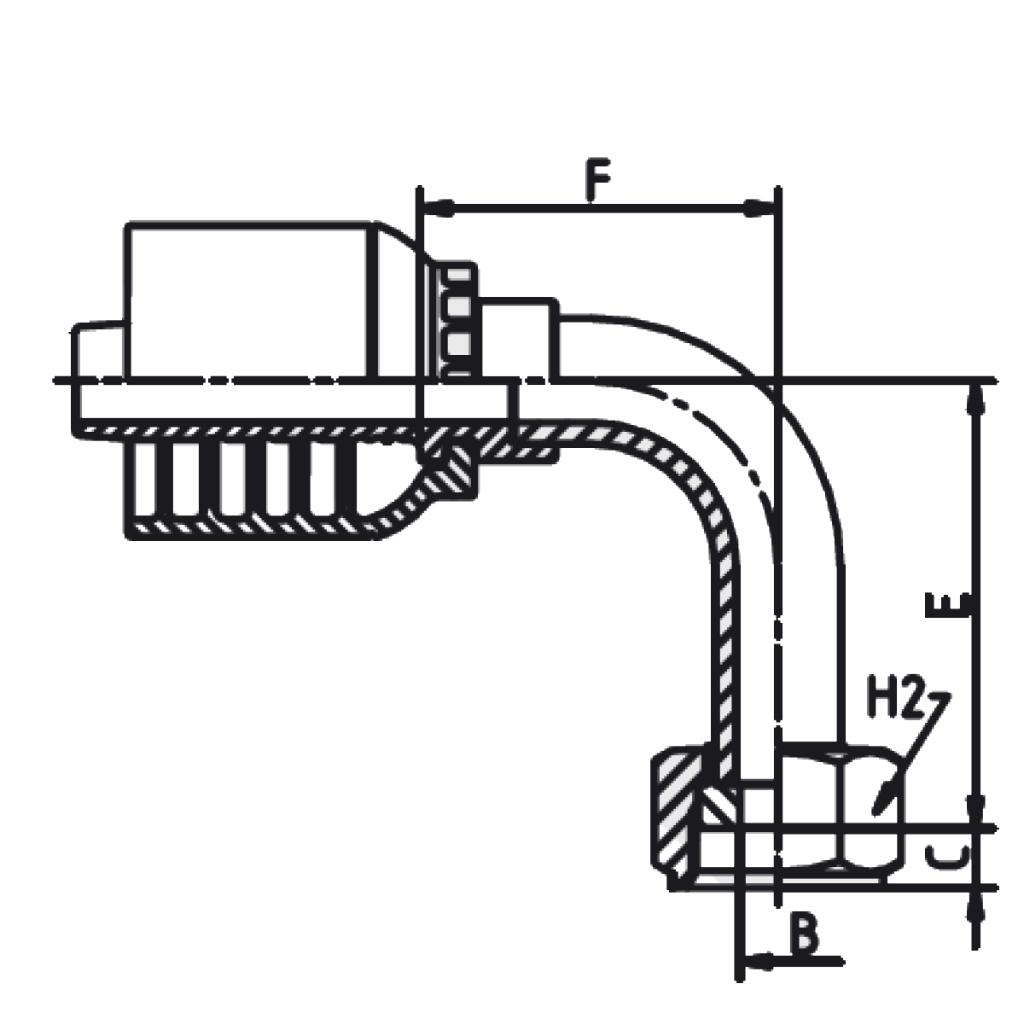

Nuvo, ORFS Insert, 11/16 in Female ORFS, 3/8 in Crimp, -06 Hose Dash Size, 90° Swept

Nuvo, ORFS Insert, 11/16 in Female ORFS, 3/8 in Crimp, -06 Hose Dash Size, 90° Swept

SKU B-24493-06-06 Categories , , , , ,

Additional information

Standards

SAE J516, ISO 12151-1

Fitting Shape

90° Swept

Connection Size 1 (Fraction Inch)

11/16 in

Connection Size 2 (Fraction Inch)

3/8 in

Connection Size 2 (Metric)

10 mm

Connection Type 1

ORFS

Connection Type 2

Crimp

Connection Gender 1

Female

Connection Gender 2

Genderless

For Hose Dash Size

-06

Termination Dash Size

-06

For Hose Inside Diameter (Fraction Inch)

3/8 in

For Hose Inside Diameter (Metric)

10 mm

Thread Size (Inch)

11/16-16

Working Pressure (bar)

689 bar

Working Pressure (MPa)

68.9 MPa

Working Pressure (psi)

10000 psi

Cutoff Size (Metric)

31.5 mm

Nut Hex Size 1 (Metric)

22 mm

Drop Length (Metric)

53.5 mm

Inside Diameter (Metric)

7 mm

Description

  • 90° Female ORFS Long Drop Slip-On Nut
