Nuvo, Flange Insert, 3/4 in Female Flange, 1/2 in Crimp, -08 Hose Dash Size, Straight

Nuvo, Flange Insert, 3/4 in Female Flange, 1/2 in Crimp, -08 Hose Dash Size, Straight

Additional information

Standards

SAE J516, ISO 12151-3

Fitting Shape

Straight

Connection Size 1 (Fraction Inch)

3/4 in

Connection Size 2 (Fraction Inch)

1/2 in

Connection Size 2 (Metric)

12 mm

Connection Type 1

Flange

Connection Type 2

Crimp

Connection Gender 1

Female

Connection Gender 2

Genderless

For Hose Dash Size

-08

Termination Dash Size

-08

For Hose Inside Diameter (Fraction Inch)

1/2 in

For Hose Inside Diameter (Metric)

12 mm

Thread Size 1 (Inch)

3/4-16

Working Pressure (bar)

206.8 bar

Working Pressure (MPa)

20.7 MPa

Working Pressure (psi)

3000 psi

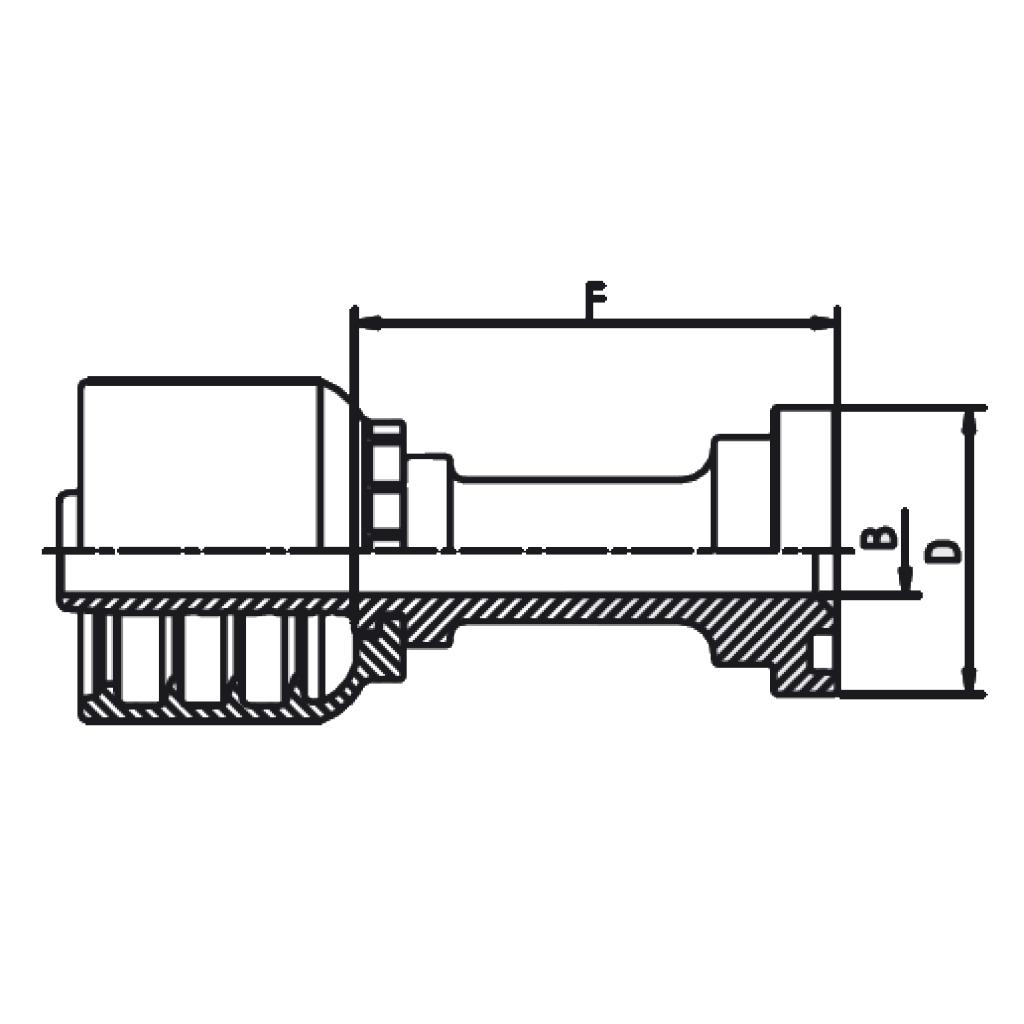

Cutoff Size (Metric)

50.9 mm

Flange Diameter (Metric)

30.2 mm

Inside Diameter (Metric)

9.5 mm

Description

  • Straight SAE Flange 3000PSI Code 61
