Additional information
Standards
SAE J516, ISO 12151-5

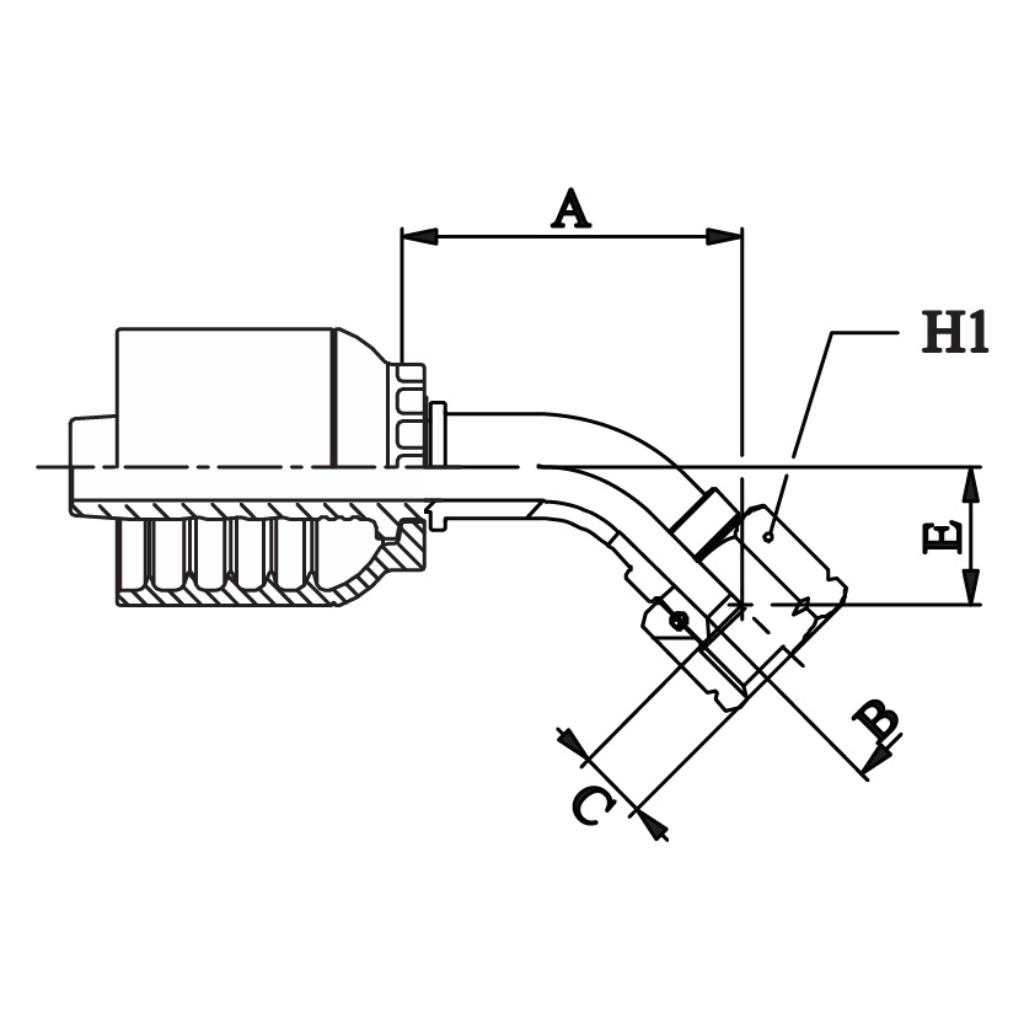

Fitting Shape
45° Swept
Connection Size 1 (Fraction Inch)
7/8 in
Connection Size 2 (Fraction Inch)
3/8 in
Connection Size 2 (Metric)
10 mm
Connection Type 1
JIC
Connection Type 2
Crimp
Connection Gender 1
Female
Connection Gender 2
Genderless
For Hose Dash Size
-06
Termination Dash Size
-10
For Hose Inside Diameter (Fraction Inch)
3/8 in
For Hose Inside Diameter (Metric)
10 mm
Thread Size (Inch)
7/8-14
Cutoff Size (Metric)
42.5 mm
Nut Hex Size (Metric)
27 mm
Drop Length (Metric)
15.5 mm
Seated Angle (°)
37 °
Inside Diameter (Metric)
7 mm
