Additional information
Standards
BS5200, ISO 12151-6

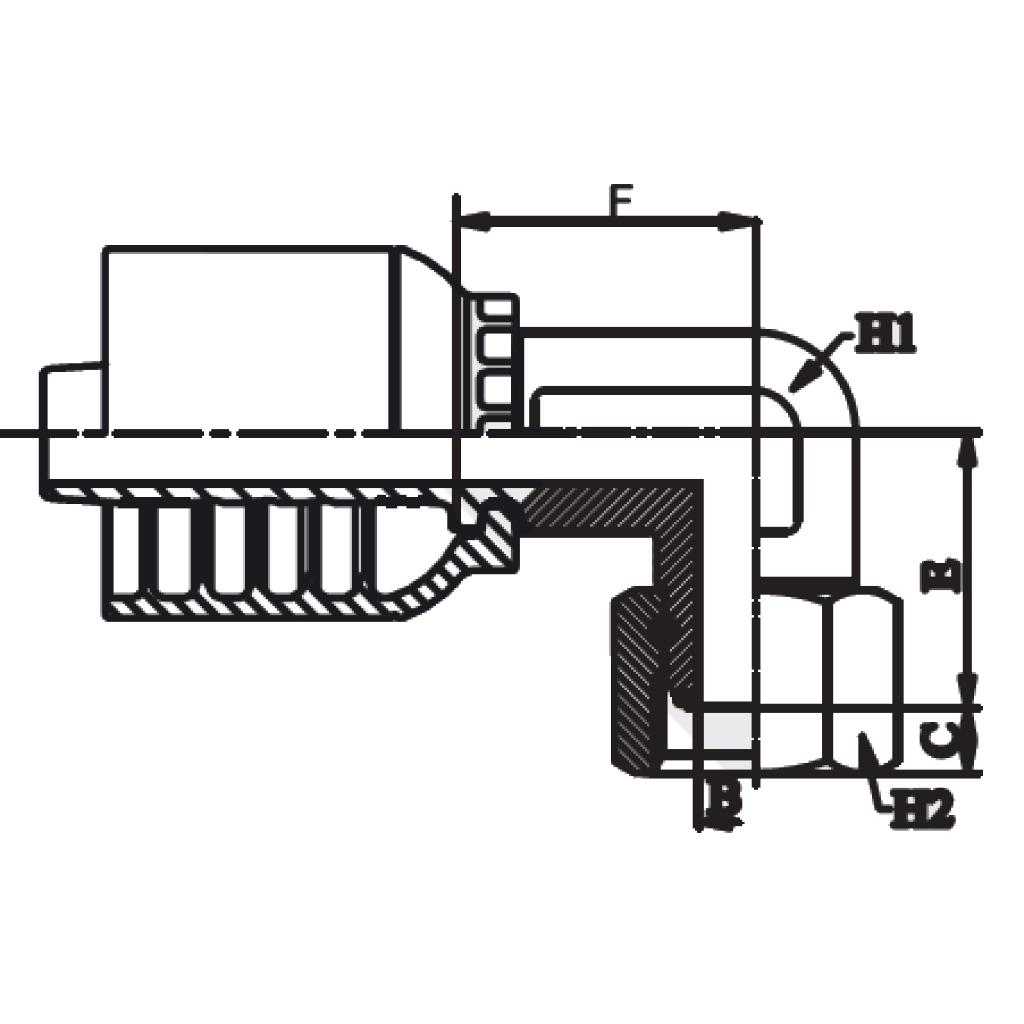

Fitting Shape
90° Swept
Connection Size 1 (Fraction Inch)
3/8 in
Connection Size 2 (Fraction Inch)
3/8 in
Connection Size 2 (Metric)
10 mm
Connection Type 1
BSP
Connection Type 2
Crimp
Connection Gender 1
Female
Connection Gender 2
Genderless
For Hose Dash Size
-06
Termination Dash Size
-06
For Hose Inside Diameter (Fraction Inch)
3/8 in
For Hose Inside Diameter (Metric)
10 mm
Thread Size (Inch)
3/8-19
Cutoff Size (Metric)
23.1 mm
Stem Hex Size (Metric)
19 mm
Nut Hex Size (Metric)
22 mm
Drop Length (Metric)
27.5 mm
Seal Type
O-Ring
Seated Angle (°)
60 °
Inside Diameter (Metric)
7 mm
