Additional information
Standards
SAE J516, ISO 12151-3

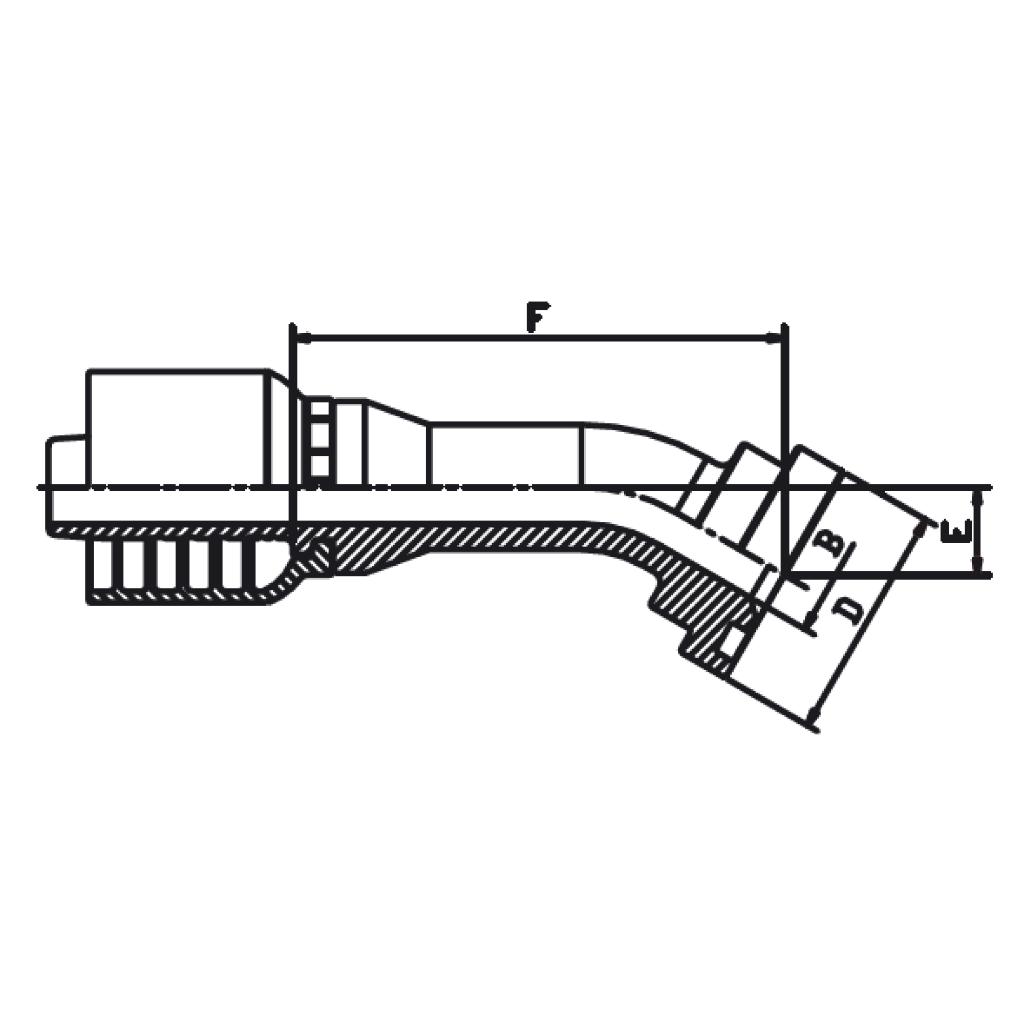

Fitting Shape
22.5° Swept
Connection Size 1 (Fraction Inch)
3/4 in
Connection Size 2 (Fraction Inch)
1/2 in
Connection Size 2 (Metric)
12 mm
Connection Type 1
Flange
Connection Type 2
Crimp
Connection Gender 1
Female
Connection Gender 2
Genderless
For Hose Dash Size
-08
Termination Dash Size
-08
For Hose Inside Diameter (Fraction Inch)
1/2 in
For Hose Inside Diameter (Metric)
12 mm
Thread Size 1 (Inch)
3/4-16
Working Pressure (MPa)
20.7 MPa
Working Pressure (psi)
3000 psi
Cutoff Size (Metric)
63.9 mm
Drop Length (Metric)
8 mm
Flange Diameter (Metric)
30.3 mm
Inside Diameter (Metric)
9.3 mm
