Additional information

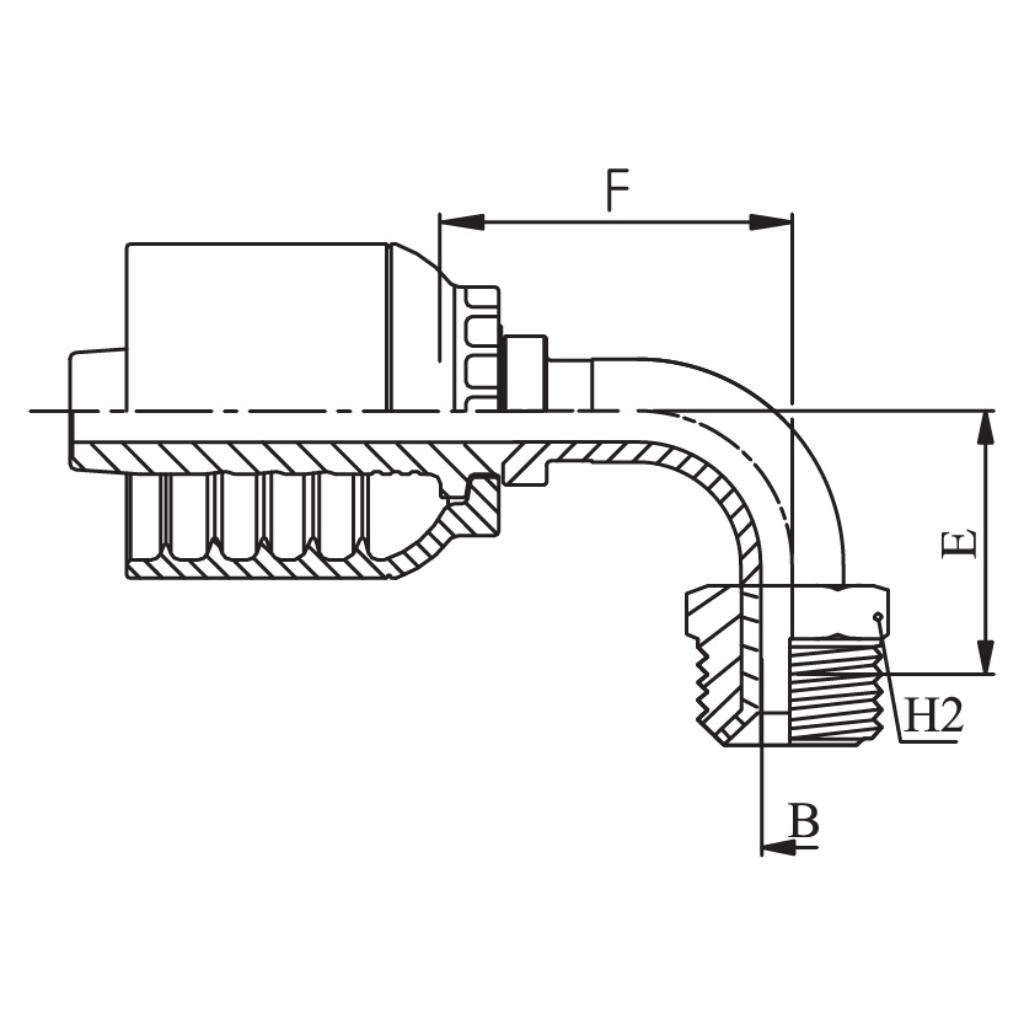

Fitting Shape
90° Swept
Connection Size 1 (Fraction Inch)
7/16 in
Connection Size 2 (Fraction Inch)
1/4 in
Connection Size 2 (Metric)
6 mm
Connection Type 1
Inverted Flare
Connection Type 2
Crimp
Connection Gender 1
Male
Connection Gender 2
Genderless
For Hose Dash Size
-04
Termination Dash Size
-04
For Hose Inside Diameter (Fraction Inch)
1/4 in
For Hose Inside Diameter (Metric)
6 mm
Thread Size 1 (Inch)
7/16-24
Cutoff Size (Metric)
40 mm
Nut Hex Size (Metric)
12 mm
Drop Length (Metric)
52 mm
Inside Diameter (Metric)
3.9 mm
Tube Outside Diameter (Fraction Inch)
1/4 in
